What is Space and Pages

Provides structured way to display the apps in Fiori Launchpad  and ease to end user for accessing the apps, which is available from S4 HANA 2020 and onward ON-PREMISE environment.

Prerequisite for Space and Pages

User must have access of below:

1. PFCG – TCode
2. /n/ui2/FLP – TCode
3. Fiori app – Manage Launchpad Space (F4834)
4. Fiori app – Manage Launchpad Page (F4512)

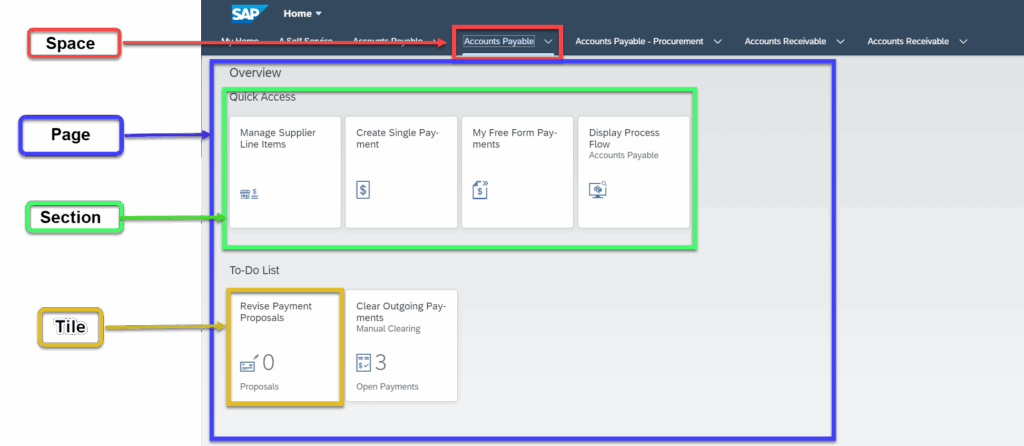

There are 4 main parts for space and pages

1. Space – Space has navigation items, a space holds the multiple pages.
2. Pages – Pages has the single or multiple sections.
3. Sections – Section is the Subareas in the Pages, Section has single or multiple Tiles.
4. Tiles – A tile represents that an app on the SAP Fiori launchpad.

Source: community.sap.com

Steps to Create Space and Pages

Step 1: Go to SAP Logon and enter the TCode – /n/ui2/FLP (Fiori Launchpad) and Press Enter

Step 2: Launch the Fiori app – ‘Manage Launchpad Spaces’.

Step 3: Fill the required details in Popup and Select Also Create a Page Option  and click on Create Button. This will create a New Page in this space.

Step 4: Click on Page and select the Page (Row)

Step 5: Add catalogs from which app needs to be assigned, search the catalog and select.

Step 6: Assign the app to the section and Page.

Step 7: If space exist, and need to create new page, we can use the fiori app – Manage Launchpad Pages

Step 8: Add new page into existing Space

Step 9: Once the Space and Pages are created successfully. Next step is to assign the Role.

Step 10: Assign this Role to the User.

Assign the custom space to the role in the Launchpad Content Manager – GUI transaction /UI2/FLPCM_CUST – or in the Role Maintenance transaction PFCG
